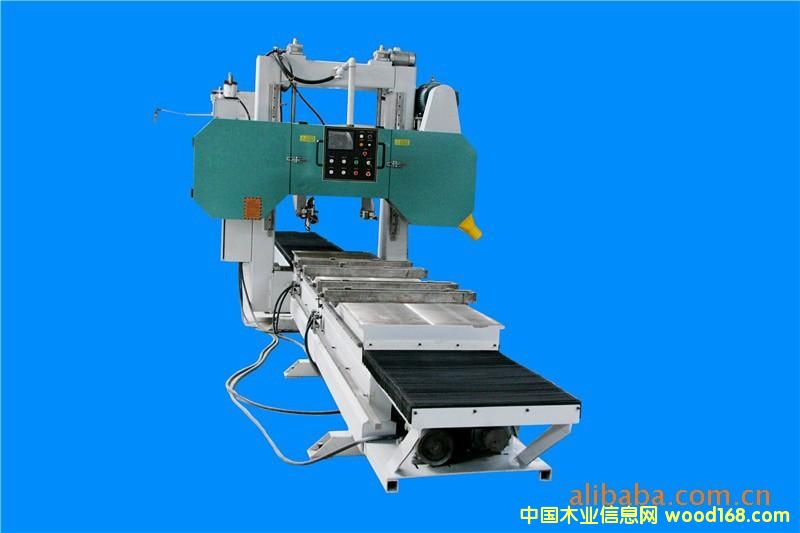

龙门锯MJR4000X700

技术参数  Technical parameters

型号 model                                             MJR4000*700

最大加工尺寸（Maximum processing size）                4000*700*700mm

工作台尺寸 (Table size)                                4000*700mm

固定木料夹具（Fixed wood fixtures）                      4个

送料速度(Feeding speed)                                0-6m/min

锯轮直径(Saw wheel diameter)                            711mm

锯轮电机（Saw wheel motor）                            18.5kw

液压压力（Hydraulic pressure）                           100kg/cm²

锯条尺寸（长*宽*高）Bad dimensions(length*width*height)    5430*34*0.9mm

锯路 Saw Road                                         1.1-2.0m

外形尺寸（长*宽*高）Dimensions(length*width*height)       8000*2405*2400mm

净重Net weight                                           3800kg
